Trusted Expert in Insulated PUF Panels
Variety & Characteristics of Insulated PUF Panel
Facing
thickness
Thickness Available:
30mm 40mm 50mm 60mm 80mm100mm120mm
Details of Insulated PUF Panel
Fast To Construct
The Insulated PUF Panel is manufactured directly at the factory, ensuring swift installation on-site. These insulated PUF panels are also exceptionally easy to install, thereby minimizing installation time.
Insulation – Heat Proof
This high-quality Rigid Polyurethane Foam (PUF) is considered one of the most efficient, high-performance insulation materials. Its superior quality standards enable substantial savings in cooling and heating costs.
Strong Load Bearing
The insulated PUF panels manufactured by us are designed to handle compressive loads of up to 1 ton per square foot. When extended, these panels can support a significant amount of weight, both live and dead loads. Additionally, our insulated PUF sheets require minimal or no support structures due to their inherent strength and capacity.
Edge Protect Technology
Weather Shield For Ultra Long Life
Technical Specifications of Insulated Panels
| Panel thickness available | 30mm, 40mm, 50mm, 60mm, 80mm, 100mm, 120mm |
| Panel total width | 1070mm |
| Panel effective width | 1000mm |
| Panel length available | 1000mm-15000mm |
| Density | 40± 2kg/m3 |
| Thermal conductivity | 0.024-0.03 W/m |
| Temperature range | -40+800C |
| CFC / HFC | Free from CFC / HFC |
| Type of foam | B1, B2, B3, PIR |
| Heat transfer co-efficient | -0.022W/M2*k |
| Pressure | 0.10Mpa |
| Top coat | 5 + 15 micron |
| Back coat | 5 + 5 micron |
| 500h (ECCA TB) | 100 h (ASTM D 2247) |
CLASSIFICATION BASED ON THICKNESS OF PANEL
50mm puf panel
50mm panels are the most ideal thickness of puf sheet. They offer the best mix of insulation, strength and cost. These are a good choice for all constructions like roof top room, hospital floor, school classrooms, roof top restaurant construction, penthouse etc.
30mm puf panel
30mm panels are the most economical type of panel. They are a good choice as an alternative for metal roofing sheets.
65mm puf panel
65mm panels are a good choice for applications where high levels of insulation are required and where extreme cold or heat is a concern, such as refrigerated warehouses and cold storage facilities
40mm puf panels
40mm panels are thicker than 30mm panels and offer more insulation and strength. They are a good choice for applications where budget is is important factor, such as servant classrooms, staff quarters, temporary offices etc.
105mm puf panel
105mm panels are the thickest type of panel available. They offer the highest levels of insulation and are a good choice for applications where extreme cold or heat is a major concern, such as sub-zero refrigerator, cryogenic chambers and blast freezers.
All things you need to know
Comprehensive Guide to Our Insulated PUF Sheets: Varieties, Pricing, Features, and More

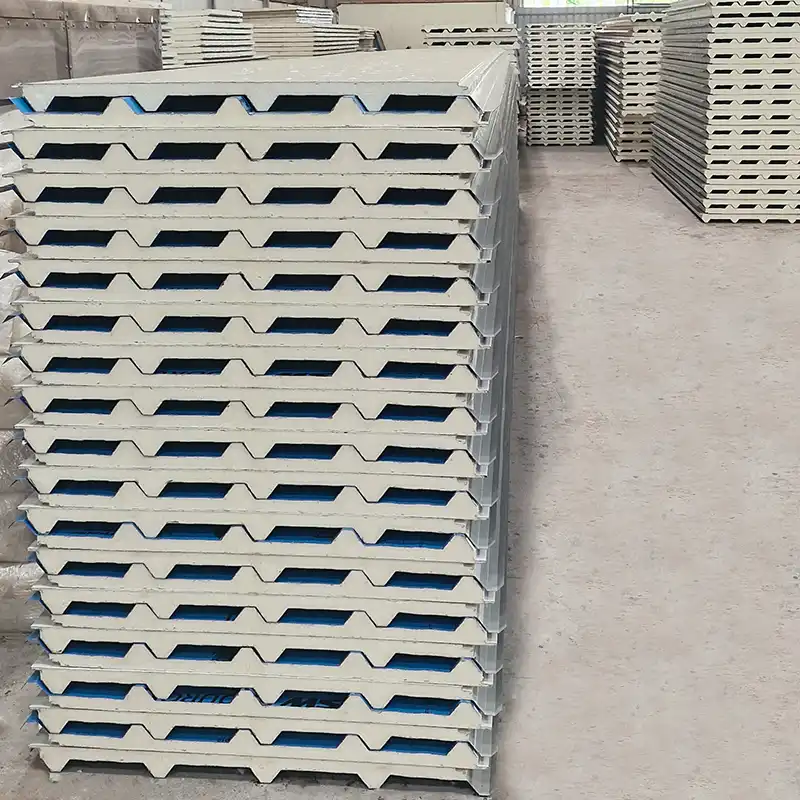

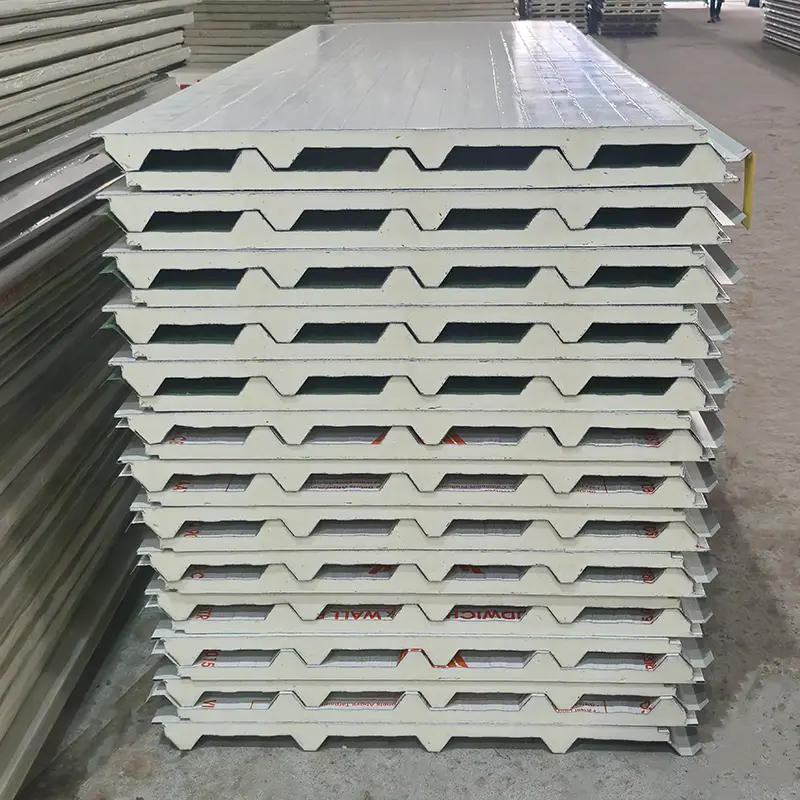

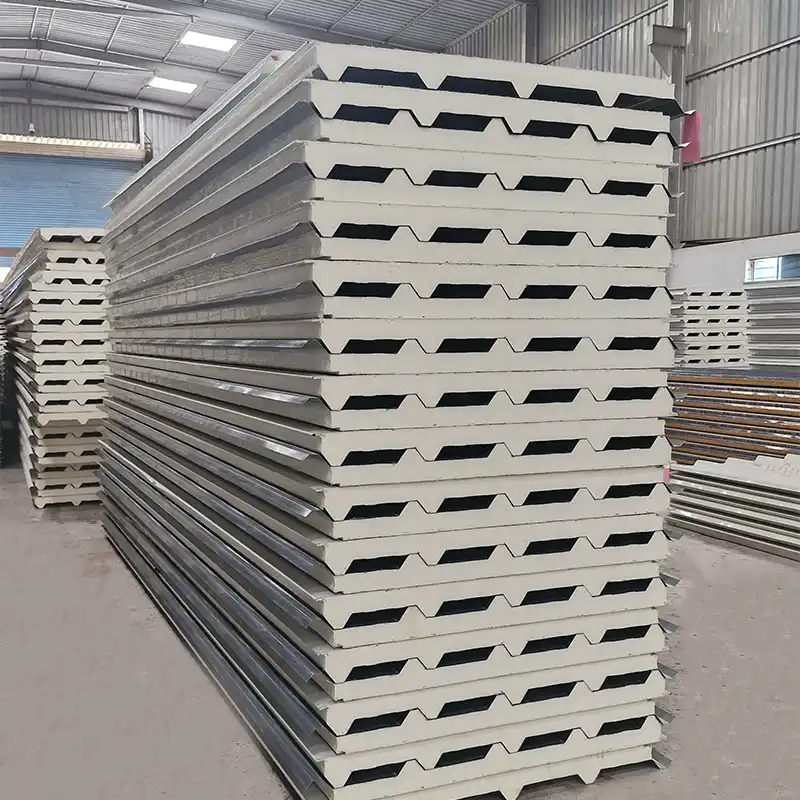

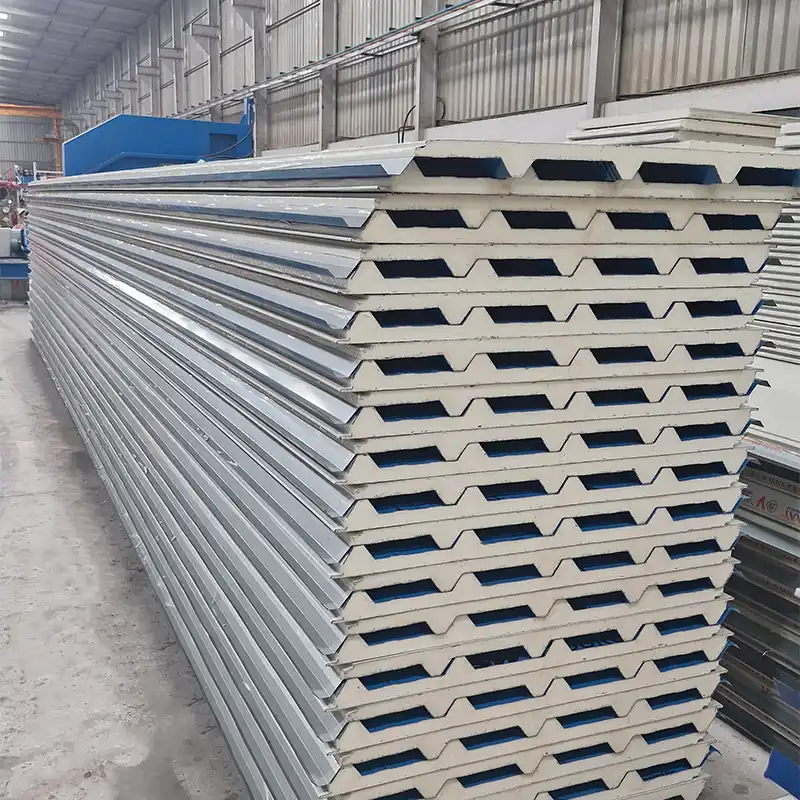

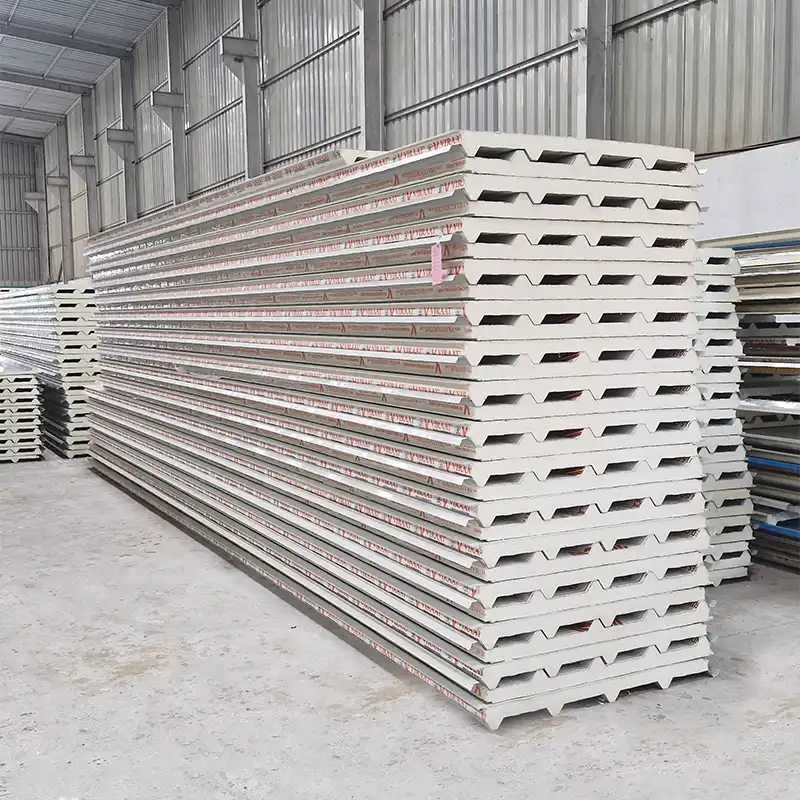

Insulated Puf Roof Panels
Our insulated PUF panels are built to endure even the harshest conditions. Available in a wide range of colors and finishes, they seamlessly integrate into any home or office design. Ideal for use in warehouses, PEB industries, small rooms, and farmhouses, these panels offer both elegance and exceptional durability. Manufactured using a continuous line production method, they feature 5 corrugations with a 250mm pitch and exterior baby ribs for added strength.
With a polyurethane foam density of 40±2 kg/m³ and Guard Film Protection on all exposed surfaces, these panels meet IS12346 standards, ensuring reliable performance and long-lasting protection.
Weather Endurance
Withstand harsh climates effortlessly.
Energy Efficiency
Maintain optimal temperatures, saving on energy bills.
Versatile Application
Ideal for diverse spaces, from warehouses to residential homes.
Get a quote for your project and unlock unbeatable solutions tailored just for you

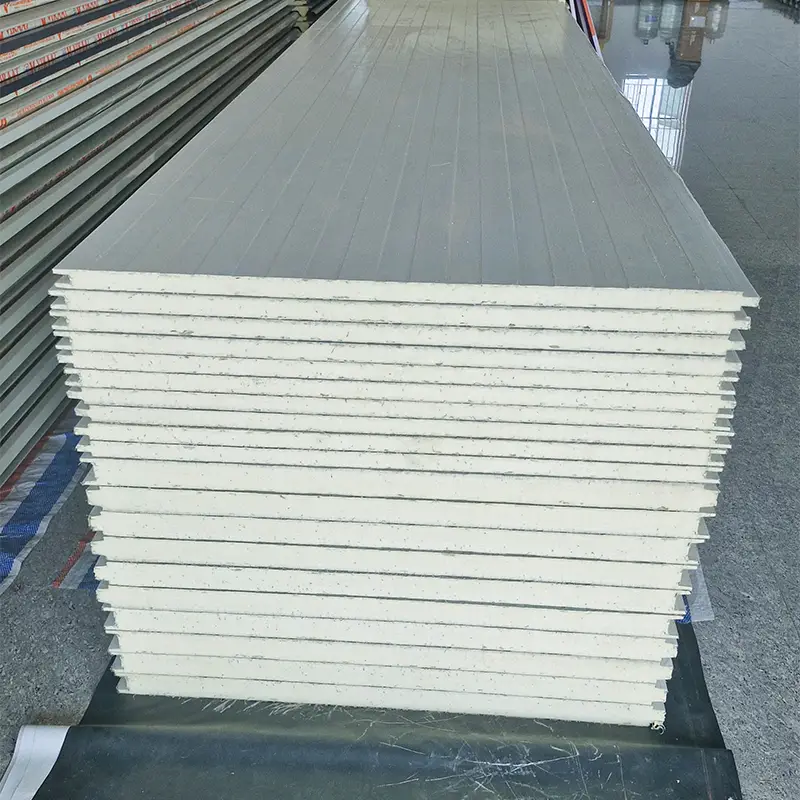

Insulated Puf Wall Panels
Our insulated PUF panels offer the most cost-effective solution for traditional walls and partitions. More affordable than aluminum and masonry options, these prefabricated walls are perfect for both residential and commercial use. The lightweight, high-performance polyurethane core, sandwiched between durable steel sheets, provides excellent toughness, durability, and ease of installation. Available in various sizes and colors, including a unique Wood Finish Texture, these insulation panels make a significant difference in both exterior walls and interior partitions.
Cost-Effective
40% to 50% cheaper than conventional walls/partitions.
Easy Installation
Lightweight design for effortless setup.
Versatile Design
Options for various thicknesses, colors, and textures.
Get a quote for your project and unlock unbeatable solutions tailored just for you.
